Since the beginning of 21st century, significant technological progress has been made in the biomedical industry. Nowadays, the industry’s dependence on biomedical equipment, including implants, surgical instruments, and medical devices have significantly increased. However, due to increased reliance on these medical devices’ issues such as infection risk, implant rejection, and wear also persist. To address these concerns, medical device coatings have emerged as an important solution. The amalgam of advanced material science and biomedical engineering have led to introduction of medical coatings. Medical coatings are specialized surface treatments applied to medical devices, implants, and medical equipment to improve their performance, durability, and safety.
Common Medical Coating Polymers
Polymers are some of the most versatile materials for medical coatings because of their customizable properties and applicability to a broad range of applications. Below are some of the most commonly used polymers in medical coatings:1-4
- Polyvinylpyrrolidone (PVP): PVP is a water-soluble polymer with hydrophilic and biocompatible characteristics, making it suitable for use in many medical device coatings. Like PEG, PVP coatings reduce protein adhesion and biofouling, helping to mitigate immune responses and maintain device functionality in implanted systems.
- Polyvinyl Alcohol (PVA): PVA is a hydrophilic polymer often used for its excellent film-forming, adhesive, and emulsifying properties. It is commonly included in UV-curable formulations due to its stability and compatibility with other components. In medical devices, PVA coatings can enhance biocompatibility by reducing protein adsorption and minimizing biofouling, thereby improving the performance and longevity of devices such as stents and catheters.
- Polyethylene Glycol (PEG) Coatings: PEG coatings have hydrophilic properties that reduce protein adsorption and are preventers of biofouling. Such coatings are frequently used in catheters and stents to prevent or minimize immune response when a device is implanted without impacting the successful functioning of the device.
- Polytetrafluoroethylene (PTFE) Coatings: PTFE, popularly known as Teflon, offers exceptional non-stick and low friction properties. This polymer is ideal for guidewires and catheters, ensuring smooth navigation through tissues and vessels.
- Polyurethane Coatings: Biocompatibility and robustness are the two main advantages associated with polyurethane coatings. Their flexible structure makes them more applicable for long-term implants such as vascular grafts or pacemaker leads.
- Silicone-based Coatings: Silicon coatings are known for their stability, elasticity, and resistance to high temperatures. They are applied to ensure lubrication, reduce friction, and facilitate the use of needles, syringes, and various other surgical instruments.
- Hydrogels: Hydrogel coatings are hydrophilic and swell in water. These coatings will find applications with the potential to reduce friction and irritation. They are being used in contact lenses, in catheters, and in other applications in contact with sensitive tissues.
- Antimicrobial Coatings: Coatings prepared on polymers together with antimicrobial agents, such as silver nanoparticles or antibiotics, are gaining significant popularity for prevention of infective diseases. Such coatings are very useful in wound dressings and implantable devices like orthopedic screws.
Common Medical Coatings Applications: From Implants to Instruments
Medical coatings find applications in a wide range of medical applications. Here are some of the more common applications:
Implants:
- Orthopedic and Dental Implants: Coatings can improve biocompatibility, reduce wear, enhance bone and osteointegration (where an artificial becomes fused with bone).5
Surgical Instruments:
- Anti-bacterial Coatings: Coatings can be used to minimize infection risk.6
- Wear-resistant Coatings: Coatings are applied for increased wear resistance.7
Catheters:
- Lubricating Coatings: These surface coatings reduce friction and improve patient comfort.8
- Anti-thrombogenic Coatings: Used to help prevent blood clot formation.9
Learn more about Hydrophilic catheter coatings.
Contact Lenses:
- Hydrophilic coating: Biocompatible coatings (used to increase biocompatibility) and reduced risk of eye irritation.10
Diagnostic Devices:
- Bioactive Coating: Coatings to improve sensitivity and specificity. Their purpose is to develop functional medical devices.11 These coatings help to bond the device with living tissue.
By tailoring the properties of medical coatings, manufacturers can create devices that are safer for use, more effective, and more durable.
Why Medical Coatings Are Used: Benefits
Medical coatings provide a wide range of advantages that help to improve patient outcomes and device performance. Some of the important benefits and reasons why they are used include:
Enhanced Biocompatibility:
- Reduced inflammation and tissue damage: Biocompatible coatings minimize adverse reactions and promote faster healing.
- Improved cell adhesion: Certain coatings encourage cell growth and tissue integration, which is essential for implants and wound dressings.
Increased Durability and Longevity:
- Resistance to wear and corrosion: Medical coatings protect the devices from damage and increase their lifetime, thus reducing maintenance costs and extend the replacement time.
- Improved mechanical properties: Coatings can improve the strength, hardness, and flexibility of devices and equipment.
Improved Functionality:
- Controlled drug release: Coatings can deliver drugs at specific rates and target specific tissues.
- Antimicrobial properties: Medical coatings can inhibit bacterial growth, reducing the risk of infection.
- Lubricity: Coatings can reduce friction, making devices easier to use and reducing patient discomfort and injury.
- Hydrophilicity/hydrophobicity: Coatings can control the interaction of devices with fluids, improving performance and reducing biofouling.
Enhanced Safety:
- Reduced risk of infection: Antimicrobial coatings minimize the risk of bacterial contamination and accumulation.
- Improved patient comfort: Lubricating coatings reduce friction and pain during procedures.
- Enhanced device reliability: Durable coatings help to prevent device failure and malfunction.
Hydromer® Medical Coatings: Revolutionizing Healthcare with Advanced Solutions
Hydromer®, Inc. is recognized as a leading medical device coatings manufacturer providing a complete range of custom coatings and specialized services to manufacturers of medical devices. Our medical coatings are designed to increase the performance of your device as well as enhance patient comfort. And due to our expertise we can help you develop your product to meet the most rigorous regulatory standards. Hydromer has spent over two decades innovating advanced coating solutions while remaining dedicated to our product quality and customer collaboration.
Our Medical Coating products include but are not limited to:

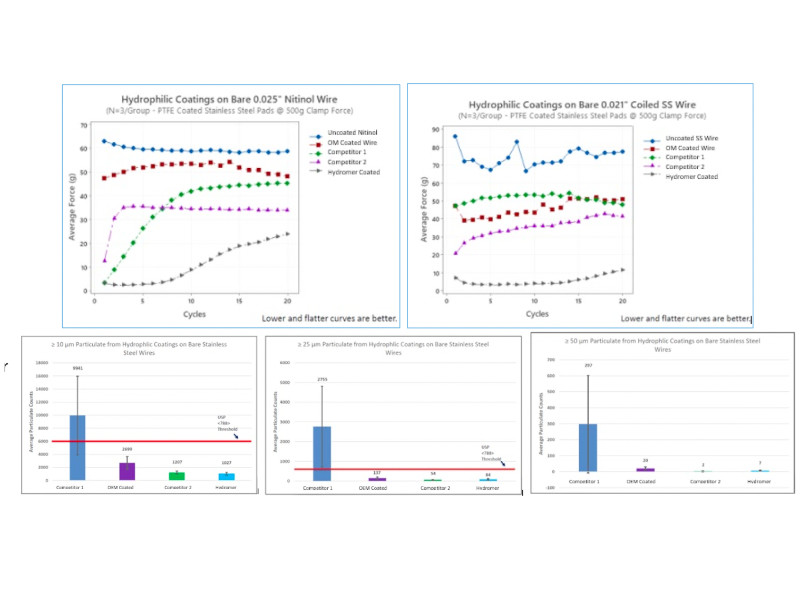

Hydromer Hydrophilic Coatings:
- Hydromer Hydrophilic Coatings, or “slippery when wet” coatings are designed to reduce friction and enhance lubricity when used.
- Commonly applied to catheters, guidewires, and many other devices to improve maneuverability and reduce patient discomfort during insertion.
- These coatings are also effective in minimizing tissue irritation.
Thromboresistant Coatings:
- Hydromer Thromboresistant coatings are specifically engineered to prevent blood clot formation on medical devices.
- Ideal for cardiovascular implants like stents and vascular grafts.
One-Step Coatings:
Our One-Step coatings offer an easier coating application process by combining multiple functions in a single layer and making it easier to maintain device performance.
Cell-Growth Enhancing Coatings:
Hydromer Cell-Growth Enhancing Coatings promote tissue integration and cell growth, particularly useful for implantable devices like orthopedic implants and wound healing products.
Antimicrobial Coatings:
- Incorporation of silver nanoparticles or antibiotics to coating surfaces to prevent infection.
- Antimicrobial Coatings are suitable for wound care products, surgical tools, and implantable devices.
Customizable Primers and Formulas:

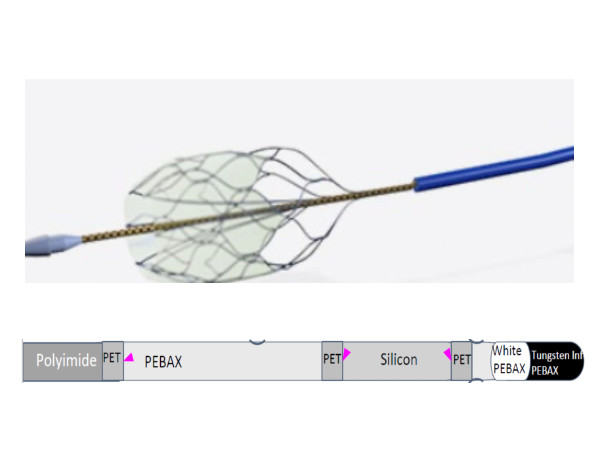

Our primers and formulas can be custom formulated to achieve your product requirements and goals. They are designed to improve the adhesion of coatings to virtually all substrates, including complex geometries.
Hydromer offers tailored solutions and flexibility to meet client’s unique requirements. For more information about our coatings, you can explore their services on the Hydromer Medical Device Coatings page.
Hydromer Coatings Services
What sets Hydromer, Inc. apart from others is our full-service, start to finish approach. Hydromer does not just sell coatings, we help you develop the ideal coating solution based on your unique requirements and project goals. Our coating services range from expert consultation and technical service to R&D, coating process development, technology transfer.
Our Medical Coating services include but are not limited to:
- Technical and regulatory consulting and support
- Contract R&D and formulation
- Contract coating services
- Specialized analytical testing
- Technology transfer services
