Coating Equipment

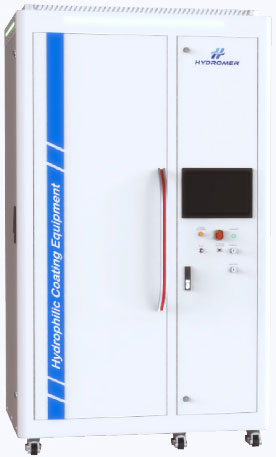

Hydrophilic Coating Equipment
Designed for efficient, automated mass production of coated medical devices.
- Fully automated coating and UV curing
- Annual production capacity: 200,000-300,000 units
- Requires only 1-2 operators
- Five-stage variable-speed dipping for uniform coating
- Integrated with imported Dymax UV curing module
- User-friendly interface: easy to operate with parameter storage capability
- Customizable: configurations to meet specific customer needs

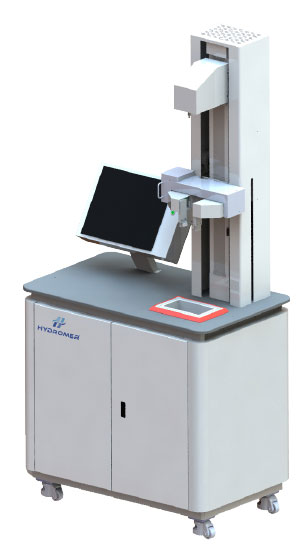

Friction Testing Equipment
Hydromer’s vertical and desktop friction testers are designed in strict accordance with coating evaluation standards, ensuring accurate assessment of the lubricity and durability.
- Compliant with industry standard YY/T 1898-2024
- Force measurement range: 0-2000 g (0-20 N)
- High-precision controller for accurate measurement
- Windows-based control system for a user-friendly and efficient operation
- Automatic test report generation
- Customizable force ranges and optional functions

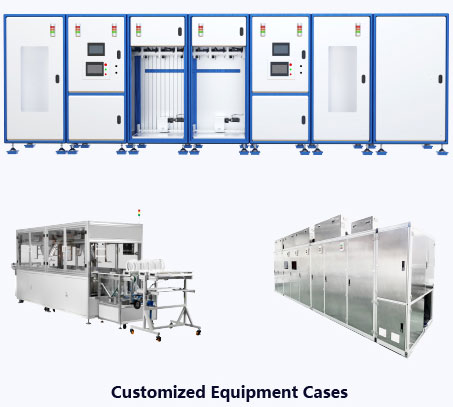

Fully Automated Coating Systems
Hydromer designs end-to-end automated coating lines tailored to the specific requirements of each medical device.
- Modular architecture for flexible configuration
- Annual production capacity up to 1 million units
- Custom features such as automatic straightening for improved precision
- Entire line operated by a single operator
- Suitable for high-volume production of catheters, balloon catheters, guidewires, urinary catheters, and other interventional devices
