Biocompatible Coatings – Applications in Biomedical Engineering

In the world of rapidly advancing medicine and biomedical engineering, biocompatible coatings have emerged as an area of innovative interest. These biomedical coatings can help improve the functionality, safety, and longevity of medical devices and implants.^{1, 2} In this article, we cover the fundamentals of biocompatibility, the science behind biocompatible coatings, their applications, and how they are shaping the future of biomedical engineering. If you are interested in medical devices or biomedical engineering this article is a must read.

What is Biocompatibility?

Biocompatibility refers to a material’s ability to perform its intended function within a biological system without causing an adverse reaction. The main requirement for biocompatibility is that the material will not harm the surrounding tissues. It is often achieved by chemical and biological inertness. This definition underscores the fact that both the physical and chemical properties of materials used in medical applications must be closely examined.

Requirements of a biocompatible material for use in a medical device or implant

A biocompatible material must:

• Be non-toxic and non-carcinogenic
• Minimize immune responses or inflammation
• Maintain its integrity and function over time in the body

When it comes to medical devices, achieving biocompatibility is crucial. This is to ensure patient safety and device effectiveness.

What are Biocompatible Coatings?

Biocompatible coatings are a type of biomedical coating (coatings used for medical devices). These surface treatments are applied to medical devices and implants. Effective biocompatible coatings create favorable interactions between the material and the body (biological systems). They also promote tissue integration, reduce adverse reactions to the device, such as inflammation or thrombosis, and prevent infection.

These coatings are used in a range of different applications. As such, they can successfully be customized to meet unique product requirements. In addition, their surface chemistry, roughness, and hydrophilicity can be adjusted based on the application.

Biocompatible coatings are vital for the practical use of medical implants and devices. They improve safety, functionality, and clinical outcomes.

Factors Affecting Biocompatibility of Coatings^3-5

Several factors can influence the biocompatibility of coatings:

1. Surface characteristics
   • Surface texture and Hydrophilicity significantly influence a coating’s biocompatibility. Rough surfaces enhance cell attachment by increasing surface area,. Hydrophilic surfaces improve protein adsorption, which aids cell adhesion and tissue integration.
2. Chemical Composition
   • The chemical composition of the coating also significantly affects biocompatibility. Polymers like PLGA – poly(lactic-co-glycolic acid) promote cell attachment and tissue regeneration, while bioactive coatings such as hydroxyapatite enhance bone integration and osteoblast activity. Magnesium and zinc alloys with biomimetic or calcium phosphate layers improve biocompatibility and offer controlled degradation for temporary implants. PEBAX is another commonly used chemistry in biocompatible coatings.
3. Environmental Factors
   • Environmental factors can alter surface characteristics, impacting biocompatibility.
4. Biological Factors
   • Factors like pH, enzymes, and mechanical stress in the biological system can also affect coating performance.

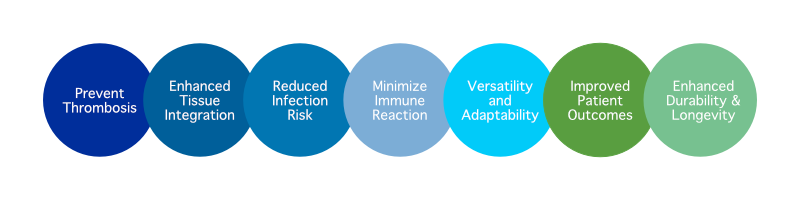

Why Biocompatible Coatings are Important^6-10

Biocompatible coatings are crucial for the success and safety of medical devices and implants. They improve device performance by:

1. Preventing Thrombosis:
   • Phosphorylcholine (PC) coatings, which mimic cell membranes, enhance the biocompatibility of blood-contacting medical devices like stents and oxygenators. They do this by reducing protein adsorption and blood clots. They also reduce friction and increase the resistance of bacteria.
2. Enhancing Tissue Integration:
   • Coatings like hydroxyapatite (HA) mimic the mineral composition of bone and promote strong bone-implant bonding. This helps implants attach better to surrounding bone.
3. Reducing Infection Risk:
   • Antimicrobial coatings, like titanium dioxide and silver nanoparticles, prevent bacterial growth and biofilm formation, reducing infection risk.
4. Minimized Immune Reactions:
   • These coatings create a non-reactive interface between the device and the body, reducing inflammation and rejection by the body.
5. Versatility and Adaptability:
   • These coatings are extremely customizable. Advanced formulation techniques allow for precise control over coating properties. This enables their use in a wide range of applications, with various materials and complex device geometries.
6. Improved Patient Outcomes:
   • Coatings allow better integration with tissues and cause less issues, leading to fewer complications and faster recovery times.
7. Enhanced Durability
   • The coatings also act as protective layers. This prevent corrosion and wear, extending the device’s lifespan.

Applications of Biocompatible Coatings in Medicine and Biomedical Engineering^{6, 9, 11, 12}

Biocompatible coatings have a wide range of applications in medicine and biomedical engineering, enhancing the performance and safety of medical devices and implants.

Application	Why they are Used
Orthopedic and Dental Implants	Hydroxyapatite (HA) coatings mimic bone minerals, enhancing osseointegration, and implant stability.
Cardiovascular Devices	Phosphorylcholine (PC) and polyethylene glycol  (PEG) coatings enhance blood compatibility, reduce protein adsorption, and prevent thrombosis in devices like stents and catheters.
Drug Delivery Systems	Biocompatible coatings (e.g., polyethylene glycol) enhance drug stability, reduce toxicity, and enable targeted delivery.
Antimicrobial Coatings	Silver nanoparticles and quaternary ammonium coatings prevent biofilms and reduce infection risks in implants and catheters.
Tissue Engineering Scaffolds	Coatings made from materials like chitosan or gelatin promote cell adhesion and proliferation, improving scaffold integration and facilitating tissue regeneration.
Biosensors and Diagnostic Devices	Biocompatible coatings boost sensor performance by enhancing biomolecule immobilization and biological interactions, improving sensitivity and functionality.

Chemistry of Biocompatible Coatings^{1, 3, 4, 13}

This type of biomedical coating is specifically designed to be compatible with biological systems, minimizing adverse reactions and promoting desired biological outcomes.  The chemistry of biocompatible coatings is quite complex, encompassing a wide range of materials and techniques.

1. Surface Chemistry:
   • The surface chemistry includes a balance of hydrophilic-hydrophobic properties, surface charge, and chemical functional groups on the coating surface. The functional groups such as -OH, -NH2, and -COOH, can be incorporated into the coating to promote biomolecular interactions. Hydrophilic-hydrophobic properties and surface charge can attract or repel biomolecules affecting their interaction with the coating.
2. Polymer Chemistry:
   • Polymers, such as polyethylene glycol, poly(lactic-co-glycolic acid), PEBAX, and polyurethanes, are widely used in biocompatible coatings. This is due to their biocompatibility, tunable properties, and processability. Moreover, the polymer’s molecular weight, branching, and crosslinking, can significantly influence the coating’s properties and performance.
3. Ceramics and Metal Alloys:
   • Hydroxyapatite is a biocompatible ceramic material that is often used as a coating for orthopedic implants to promote bone growth. Biocompatible alloys are sometimes used to improve mechanical properties and corrosion resistance.

Application Techniques for Biocompatible Coatings^{10, 14-16}

Different techniques are used to apply biocompatible coatings. Some of the common application techniques are listed below.

• Dip coating: Dip coating involves submerging a substrate in a coating material and withdrawing it at a controlled speed, producing uniform coatings, often for medical device manufacturing.
• Electrochemical Deposition (ED): ED allows uniform deposition of coatings like nano-silver-loaded hydroxyapatite on conductive substrates. This application techniques allows for control over coating properties, providing antibacterial and biocompatibility benefits.
• Sol-Gel Coating: The sol-gel process involves hydrolyzing and condensing metal alkoxides or salts to form a gel, which is dried and sintered into a solid coating.
• Plasma Spraying: Plasma spraying uses a high-temperature plasma jet to melt and spray powdered materials like metals, ceramics, and polymers onto surfaces.
• Chemical Vapor Deposition: A chemical reaction creates a coating on implants, offering properties like high hardness and corrosion resistance.

Hydromer® Medical Coatings: Ensuring Biocompatibility

Hydromer®, Inc. is a medical device coatings manufacturer. Our medical coatings have become a benchmark in the biomedical industry for their quality, versatility, and effectiveness. Our custom biocompatible coatings are highly customizable, and offer many benefits for biomedical applications. Some of the many benefits of our biomedical coatings include:

• Reduced device friction (increased lubricity)
• Thromboresistant coatings reduce blood clotting
• Cell-growth enhancing, biocompatible coatings encourage cellular attachment, enhancing adhesion and proliferation of cells and increase wound healing and cell repair
• Compatibility with a wide range of medical devices, including implants, catheters, and guidewires, etc.

Hydromer coatings are particularly valued for improving patient comfort and device maneuverability in clinical settings. Learn more about our Hydromer Medical Device Coatings.

Conclusion

Biocompatible coatings are a significant step forward in biomedical engineering. They allow synthetic devices, such as medical devices and implants, to be safely used in natural, biological systems. These coatings are highly adaptable and can be custom formulated to meet specific product requirements. And they offer many benefits, such as preventing thrombosis, enhancing tissue integration, minimizing infections and reactions, and improving patient outcomes.

Hydromer, a leading manufacturer of biomedical coatings provides a range of dependable, innovative solutions that are suitable for a wide  range of applications in medicine. Our biocompatible coatings enhance safety, performance, and durability. They also meet stringent medical standards while paving the way for innovations in healthcare technology.

Contact us for questions or to start your project now.

References

1. Abdulhasan AA, Sheng EL, Mustafa AM and Isa MRB. Recent Advancements in Biocompatible Coatings for Metallic and Non-Metallic Biomaterials: A Review. Corrosion Science and Technology. 2024; 23: 449-69.

2. Chan D, Maikawa CL, d’Aquino AI, Raghavan SS, Troxell ML and Appel EA. Polyacrylamide-based hydrogel coatings improve biocompatibility of implanted pump devices. Journal of biomedical materials research Part A. 2023; 111: 910-20.

3. Tang L, Thevenot P and Hu W. Surface chemistry influences implant biocompatibility. Current topics in medicinal chemistry. 2008; 8: 270-80.

4. Jurak M, Wiącek AE, Ładniak A, Przykaza K and Szafran K. What affects the biocompatibility of polymers? Advances in Colloid and Interface Science. 2021; 294: 102451.

5. Williams DF. On the mechanisms of biocompatibility. Biomaterials. 2008; 29: 2941-53.

6. Hildebrand HF, Blanchemain N, Mayer G, Chai F, Lefebvre M and Boschin F. Surface coatings for biological activation and functionalization of medical devices. Surface and Coatings Technology. 2006; 200: 6318-24.

7. Henkes H, Bhogal P, Aguilar Pérez M, et al. Anti-thrombogenic coatings for devices in neurointerventional surgery: case report and review of the literature. Interventional Neuroradiology. 2019; 25: 619-27.

8. Swartjes JJTM, Sharma PK, Kooten T, et al. Current developments in antimicrobial surface coatings for biomedical applications. Current Medicinal Chemistry. 2015; 22: 2116-29.

9. Nathanael AJ and Oh TH. Biopolymer Coatings for Biomedical Applications. Polymers 12:  (2020).

10. Saba T, Saad KSK and Rashid AB. Precise surface engineering: Leveraging chemical vapor deposition for enhanced biocompatibility and durability in biomedical implants. Heliyon. 2024; 10.

11. Hoffman AS. Hydrogels for biomedical applications. Advanced drug delivery reviews. 2012; 64: 18-23.

12. LeGeros RZ, Coelho PG, Holmes D, Dimaano F and LeGeros JP. Orthopedic and dental implant surfaces and coatings. Biological and Biomedical Coatings Handbook: Applications. CRC Press, 2016, p. 301-33.

13. Saxena V, Shukla I and Pandey LM. Chapter 8 – Hydroxyapatite: an inorganic ceramic for biomedical applications. In: Holban A-M and Grumezescu AM, (eds.). Materials for Biomedical Engineering. Elsevier, 2019, p. 205-49.

14. Alontseva D, Azamatov B, Safarova Y, Voinarovych S and Nazenova G. A Brief Review of Current Trends in the Additive Manufacturing of Orthopedic Implants with Thermal Plasma-Sprayed Coatings to Improve the Implant Surface Biocompatibility. Coatings. 2023; 13: 1175.

15. Asri RIM, Harun WSW, Hassan MA, Ghani SAC and Buyong Z. A review of hydroxyapatite-based coating techniques: Sol–gel and electrochemical depositions on biocompatible metals. Journal of the mechanical behavior of biomedical materials. 2016; 57: 95-108.

16. Song J, Winkeljann B and Lieleg O. Biopolymer‐based coatings: promising strategies to improve the biocompatibility and functionality of materials used in biomedical engineering. Advanced Materials Interfaces. 2020; 7: 2000850.
